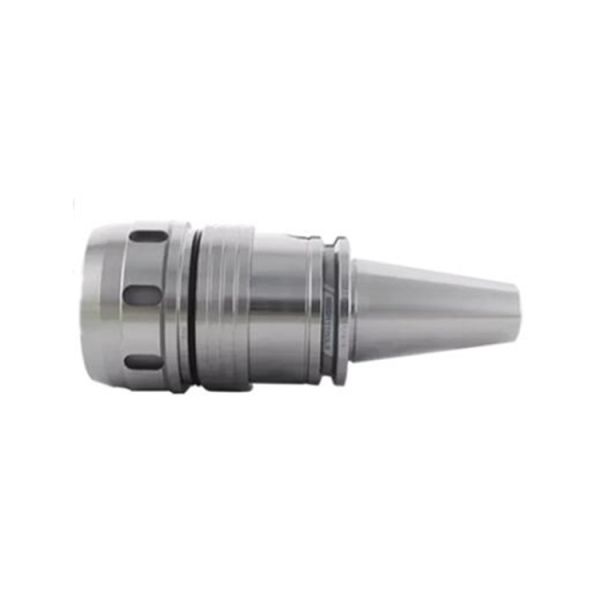

CATEE Heavy Duty Power Milling Chuck Tool Holder CATEE Standard OZ Milling Chuck Tool Holder
CATEE OZ Powerful Milling Collet Chuck,tool holder for mechanical spindle and cutting tool and other accessory tool connection. Is a simple, popular spindle shank connection standard, mainly CT30 CT40 CT50... Etc.. Mold industry, and high-speed engraving machine, used more.DIN6391 CATEE OZ Collet Chuck, DIN6388 OZ collet clamping straight shank tools of various sizes, high speed and high precision machining.Mechanical spindle and cutting tools and other accessories.High Precision CATEE shank Tool Holder ,balanced G6.3 or G2.5 For choose.
1.CATEE OZ Powerful Collet Chuck Material : Allyed case hardened steel , black-finished and precisely grinded
2.CATEE OZ Powerful Collet Chuck Taper tolerance: <AT3
3.Hardness: HRC 56-58
4.Carbon depth: 0.8mm ± 0.2mm
5.CATEE OZ Powerful Collet Chuck Max run out : <0.005mm
6.Surface Roughness: Ra <0.005mm
7.Shank body standard : ANSI B5.50
CATEE OZ Powerful Collet Chuck Usage
For mounting shank tools in collets, for precision milling and heavy metal working.
CATEE OZ Powerful Collet Chuck Technical specifiCATEEion
CATEE OZ Powerful Milling Collet Chuck is a high-performance tool holder designed for milling appliCATEEions. It features a CATEE (CATEEer-pillar) taper, which is a popular standard for tool holders in the machining industry.
The OZ in the name refers to the collet system used in this chuck. The OZ collet system is known for its powerful gripping force and high precision. It allows for quick and easy tool changes, while ensuring maximum tool stability during machining operations.
This milling collet chuck is designed to be used with high-speed milling machines and is capable of handling heavy-duty cutting. It is made from high-quality materials, such as hardened steel, to ensure durability and long tool life.
Overall, the CATEE OZ Powerful Milling Collet Chuck is a reliable and efficient tool holder that can greatly improve the performance of milling operations.
| Model | D1 | L | L1 | D | Collet Type |
| CATEE40-OZ25-2.25 | 1/8-1 | 2.25 | 1.18 | 2.36 | OZ25 |
| CATEE40-OZ32-2.25 | 1/4-1-1/4 | 2.25 | 1.3 | 2.83 | OZ32 |
| CATEE40-OZ32-4.00 | 1/4-1-1/4 | 4 | 1.3 | 2.83 | OZ32 |
| CATEE50-OZ25-2.25 | 1/8-1 | 2.25 | 1.18 | 2.36 | OZ25 |
| CATEE50-OZ25-4.00 | 1/8-1 | 4 | 1.18 | 2.36 | OZ25 |
| CATEE50-OZ32-2.25 | 1/4-1-1/4 | 2.25 | 1.3 | 2.83 | OZ32 |
| CATEE50-OZ32-4.00 | 1/4-1-1/4 | 4 | 1.3 | 2.83 | OZ32 |
CATEE Taper Standard OZ collet chuck is a type of tool holder used in machining operations. It is designed to securely hold cutting tools, such as end mills or drills, in place during the machining process.
The CATEE Taper refers to the standardized taper used in the chuck, which allows for easy interchangeability of tool holders. The OZ collet chuck specifically uses OZ collets, which are a type of collet that provides high clamping force and accuracy.
The OZ collet chuck is typically used in high-speed machining appliCATEEions where precision and rigidity are crucial. It is commonly used in industries such as aerospace, automotive, and mold making.
